Windows DDE Support

Summary:

• What is DDE?
• Using DDE API
• The DDE API
• Example
• BDL Wrappers for DDE functions

See also: Built-in Functions.

What is DDE?

DDE is a form of inter-process communication implemented by Microsoft for Windows platforms. DDE uses shared memory to exchange data between applications. Applications can use DDE for one-time data transfers, and for ongoing exchanges in applications that send updates to one another as new data becomes available.

Please refer to your Microsoft documentation for DDE compatibility between existing versions. As an example, DDE commands were changed between Office 97 and Office 98.

Using DDE API

With DDE Support, you can invoke a Windows application and send data to or receive data from it. To use this functionality, the program must use the Windows Front End.

Before using the DDE functions, the TCP communication channel between the application and the front end must be established with a display (OPEN WINDOW, MENU, DISPLAY TO).

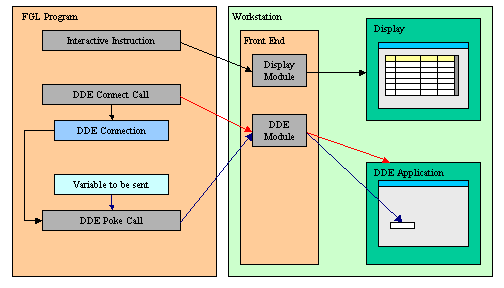

The DDE API is used in a four-part procedure, as described in the following steps:

1. The application sends to the Front End the DDE order using the TCP/IP channel.
2. The Front End executes the DDE order and sends the data to the Windows application through the DDE API.
3. The Windows application executes the command and sends the result, which can be data or an error code, to the Front End.
4. The Windows Front End sends back the result to the application using the TCP/IP channel.

A DDE connection is uniquely identified by two values: The name of the DDE Application and the document. Most DDE functions require these two values to identify the DDE source or target.

The DDE API

The DDE API is based on the front call technique as described in Front End Functions. All DDE functions are grouped in the WINDDE front end function module.

DDEConnect

Purpose:

This function opens a DDE connection.

Syntax:

Notes:

1. program is the name of the DDE application.
2. document is the document that is to be opened.
3. result is an integer variable receiving the status.
4. result is TRUE if the function succeeded, FALSE otherwise.
5. If the function failed, use DDEError to get the description of the error.

Warnings:

1. If the function failed with "DMLERR_NO_CONV_ESTABLISHED", then the DDE application was probably not running; use execute or shellexec front call to start the DDE application.

DDEExecute

Purpose:

This function executes a DDE command.

Syntax:

Notes:

1. program is the name of the DDE application.
2. document is the document that is to be used.
3. command is the command that needs to be executed.
4. Refer to the program documentation for the syntax of command.
5. result is an integer variable receiving the status.
6. result is TRUE if the function succeeded, FALSE otherwise.
7. If the function failed, use DDEError to get the description of the error.

Warnings:

1. The DDE connection must be opened, see DDEConnect.

DDEFinish

Purpose:

This function closes a DDE connection.

Syntax:

Notes:

1. program is the name of the DDE application.
2. document is the document that is to be closed.
3. result is an integer variable receiving the status.
4. result is TRUE if the function succeeded, FALSE otherwise.
5. If the function failed, use DDEError to get the description of the error.

Warnings:

1. The DDE connection must be opened, see DDEConnect.

DDEFinishAll

Purpose:

This function closes all DDE connections as well as the DDE server program.

Syntax

Notes:

1. Closes all DDE connections.
2. result is an integer variable receiving the status.
3. result is TRUE if the function succeeded, FALSE otherwise.

DDEError

Purpose:

This function returns the error information about the last DDE operation.

Syntax:

Notes:

1. errmsg is the error message. It is set to NULL if no error occurred.

DDEPeek

Purpose:

This function retrieves data from the specified program and document using the DDE channel.

Syntax:

CALL ui.Interface.frontCall("WINDDE","DDEPeek",
        [ program, container, cells ], [ result, value ] )

Notes:

1. program is the name of the DDE application.
2. container is the document or sub-document that is to be used.
   A sub-document can, for example, be a sheet in Microsoft Excel.
3. cells represents the working items; see the program documentation for the format of cells.
4. value represents the data to be retrieved; see the program documentation for the format of values.
5. result is an integer variable receiving the status.
6. result is TRUE if the function succeeded, FALSE otherwise.
7. If the function failed, use DDEError to get the description of the error.
8. value is a variable receiving the cells values.

Warnings:

1. The DDE connection must be opened; see DDEConnect.
2. DDEError can only be called once to check if an error occurred.

DDEPoke

Purpose:

This function sends data to the specified program and document using the DDE channel.

Syntax:

CALL ui.Interface.frontCall("WINDDE","DDEPoke",
        [ program, container, cells, values ], [result] )

Notes:

1. program is the name of the DDE application.
2. container is the document or sub-document that is to be used.
   A sub-document can, for example, be a sheet in Microsoft Excel.
3. cells represents the working items; see the program documentation for the format of cells.
4. values represents the data to be sent; see the program documentation for the format of values.
5. result is an integer variable receiving the status.
6. result is TRUE if the function succeeded, FALSE otherwise.
7. If the function failed, use DDEError to get the description of the error.

Warnings:

1. The DDE connection must be opened; see DDEConnect.
2. An error may occur if you try to set many (thousands of) cells in a single operation.

Example

dde_example.per

01 DATABASE formonly
02 SCREEN
03 {
04 Value to be given to top-left corner :
05 [f00                                ]
06 Value found on top-left corner :
07 [f01                                ]
08 }
09 ATTRIBUTES
10   f00 = formonly.val;
11   f01 = formonly.rval, NOENTRY;

dde_example.4gl

01 MAIN
02   -- Excel must be open with "File1.xls"
03   CONSTANT file = "File1.xls"
04   CONSTANT prog = "EXCEL"
05   DEFINE val, rval STRING
06   DEFINE res INTEGER
07   OPEN WINDOW w1 AT 1,1 WITH FORM "dde_example.per"
08   INPUT BY NAME val
09   CALL ui.Interface.frontCall("WINDDE","DDEConnect", [prog,file], [res] )
10   CALL checkError(res)
11   CALL ui.Interface.frontCall("WINDDE","DDEPoke", [prog,file,"R1C1",val], [res] );
12   CALL checkError(res)
13   CALL ui.Interface.frontCall("WINDDE","DDEPeek", [prog,file,"R1C1"], [res,rval] );
14   CALL checkError(res)
15   DISPLAY BY NAME rval
16   INPUT BY NAME val WITHOUT DEFAULTS
17   CALL ui.Interface.frontCall("WINDDE","DDEExecute", [prog,file,"[save]"], [res] );
18   CALL checkError(res)
19   CALL ui.Interface.frontCall("WINDDE","DDEFinish", [prog,file], [res] );
20   CALL checkError(res)
21   CALL ui.Interface.frontCall("WINDDE","DDEFinishAll", [], [res] );
22   CALL checkError(res)
23   CLOSE WINDOW w1
24 END MAIN
25
26 FUNCTION checkError(res)
27   DEFINE res INTEGER
28   DEFINE mess STRING
29   IF res THEN RETURN END IF
30   DISPLAY "DDE Error:"
31   CALL ui.Interface.frontCall("WINDDE","DDEError",[],[mess]);
32   DISPLAY mess
33   CALL ui.Interface.frontCall("WINDDE","DDEFinishAll", [], [res] );
34   DISPLAY "Exit with DDE Error."
35   EXIT PROGRAM (-1)
36 END FUNCTION

BDL Wrappers to DDE front end functions

The following functions are provided for backward compatibility. We recommend that you use the front call functions if you write new code.

Warning: These functions (especially DDEExecute and DDEPoke) expect escaped TAB, CR and LF characters in the strings passed as parameters. For example, a TAB character must be written as "\\t" in a BDL string constant passed as parameter to the DDEPoke function.

DDEConnect()

Purpose:

This function opens a DDE connection.

Syntax:

Notes:

1. program is the name of the DDE application.
2. document is the document that is to be opened.
3. The function returns TRUE if the connection succeeded, FALSE otherwise.
4. If the return value is FALSE, use DDEGetError() to get the description of the error.

Warnings:

1. If the function failed with "DMLERR_NO_CONV_ESTABLISHED", then the DDE application was probably not running; use WinExec() or WinShellExec() front call to start the DDE application.

DDEExecute()

Purpose:

This function executes a DDE command.

Syntax:

Notes:

1. program is the name of the DDE application.
2. document is the document that is to be used.
3. command is the command that needs to be executed.
4. Refer to the program documentation for the syntax of command.
5. The function returns TRUE if the command execution succeeded, FALSE otherwise.
6. If the return value is FALSE, use DDEGetError() to get the description of the error.

Warnings:

1. The DDE connection must be opened, see DDEConnect().

DDEFinish()

Purpose:

This function closes a DDE connection.

Syntax:

Notes:

1. program is the name of the DDE application.
2. document is the document that is to be closed.
3. The function returns TRUE if the function succeeded, FALSE otherwise.
4. If the return value is FALSE, use DDEGetError() to get the description of the error.

Warnings:

1. The DDE connection must be opened, see DDEConnect().

DDEFinishAll()

Purpose:

This function closes all DDE connections as well as the DDE server program.

Syntax

Notes:

1. Closes all DDE connections.

DDEGetError()

Purpose:

This function returns the error information about the last DDE operation.

Syntax:

Notes:

1. The function returns the error message or NULL if no error occurred.

DDEPeek()

Purpose:

This function retrieves data from the specified program and document using the DDE channel.

Syntax:

Notes:

1. program is the name of the DDE application.
2. container is the document or sub-document that is to be used. A sub-document can, for example, be a sheet in Microsoft Excel.
3. cells represents the working items; see the program documentation for the format of cells.
4. value represents the data to be retrieved; see the program documentation for the format of values.
5. If the function succeeded, DDEGetError() function returns NULL.

Warnings:

1. The DDE connection must be opened; see DDEConnect().
2. DDEGetError() can only be called once to check if an error occurred.

DDEPoke()

Purpose:

This function sends data to the specified program and document using the DDE channel.

Syntax:

Notes:

1. program is the name of the DDE application.
2. container is the document or sub-document that is to be used. A sub-document can, for example, be a sheet in Microsoft Excel.
3. cells represents the working items; see the program documentation for the format of cells.
4. values represents the data to be sent; see the program documentation for the format of values.
5. The function returns TRUE if the function succeeded, FALSE otherwise.
6. If the return value is FALSE, use DDEGetError() to get the description of the error.

Warnings:

1. The DDE connection must be opened; see DDEConnect().
2. An error may occur if you try to set many (thousands of) cells in a single operation.
